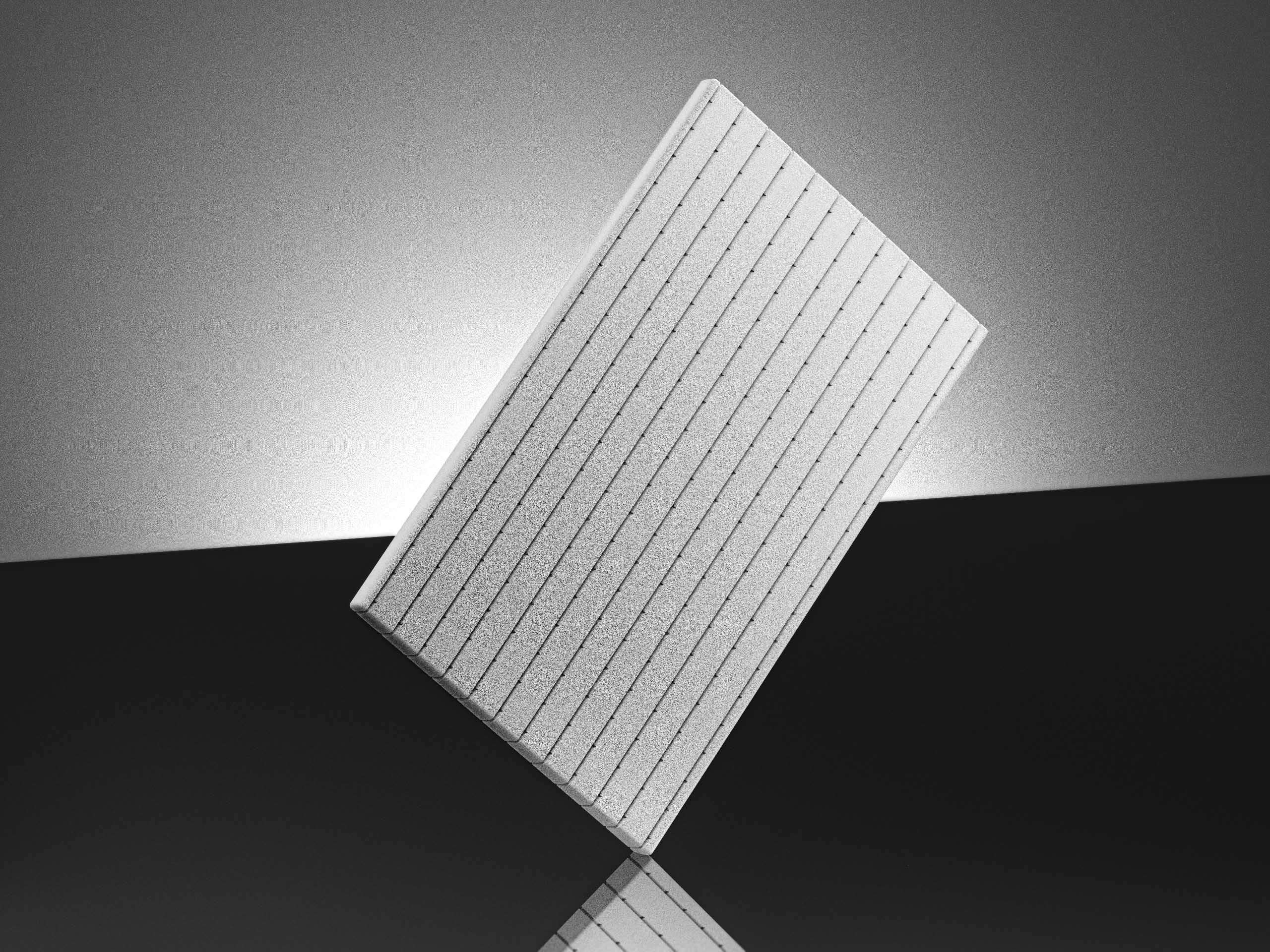

PET Foam

Characteristics

•Easy processing: thermal forming can forge complicated shapes and structures, heat stability is maintained in heating condition

•Good mechanical property: excellent shear, co-mpression and tensile properties.

• Recyclable: Scraps, chips during the PET production process and wastes can be recycled and reused.

• Environmental Friendly: The latest PET foaming technology uses the carbon dioxide produced during the production process as a foaming agent,  it can achieve zero greenhouse gas emissions.

• High temperature resistance: It can  withstand a temperature of about 200 ° C for a short time during the processing process, and a temperature of about 120 ° C for a long time during the service life.

Typical Applications

• Wind power: blade housing, web, leading edge and trailing edge, nacelle, etc.

•  Ships: ship bottom, freeboard, stern board, deck, ship interior, bulkhead, hatches and hatches, etc.

• Aerospace: Structural and semi-structural aircraft parts, internal parts, transport container pallets, fairing, etc.

• Rail transit: floor, side wall, roof, bulkhead, door, front end equipment apron and cover and interior trim.

• Building materials: ceiling, cladding, dome, house, support form, etc.

• Industry: Cover plate, container, X-ray table, sports equipment, etc.

Size: 1250*1000*1200mm

Others on requests

Density range: 60-300kg/m³

Compressive strength: 0.55-7MPa

Compression modulus: 65-400MPa

Shear strength: 0.6-2.4MPa

Shear modulus: 10-140MPa

Tensile strength: 0.8-3.2MPa

Tensile modulus: 50-380MPa

Thermal conductivity: 0.027-0.053W/mk
